Next-generation battery technologies have the potential to revolutionise the way underground mines operate and significantly slash costs. Carly Leonida looks at the current state of play

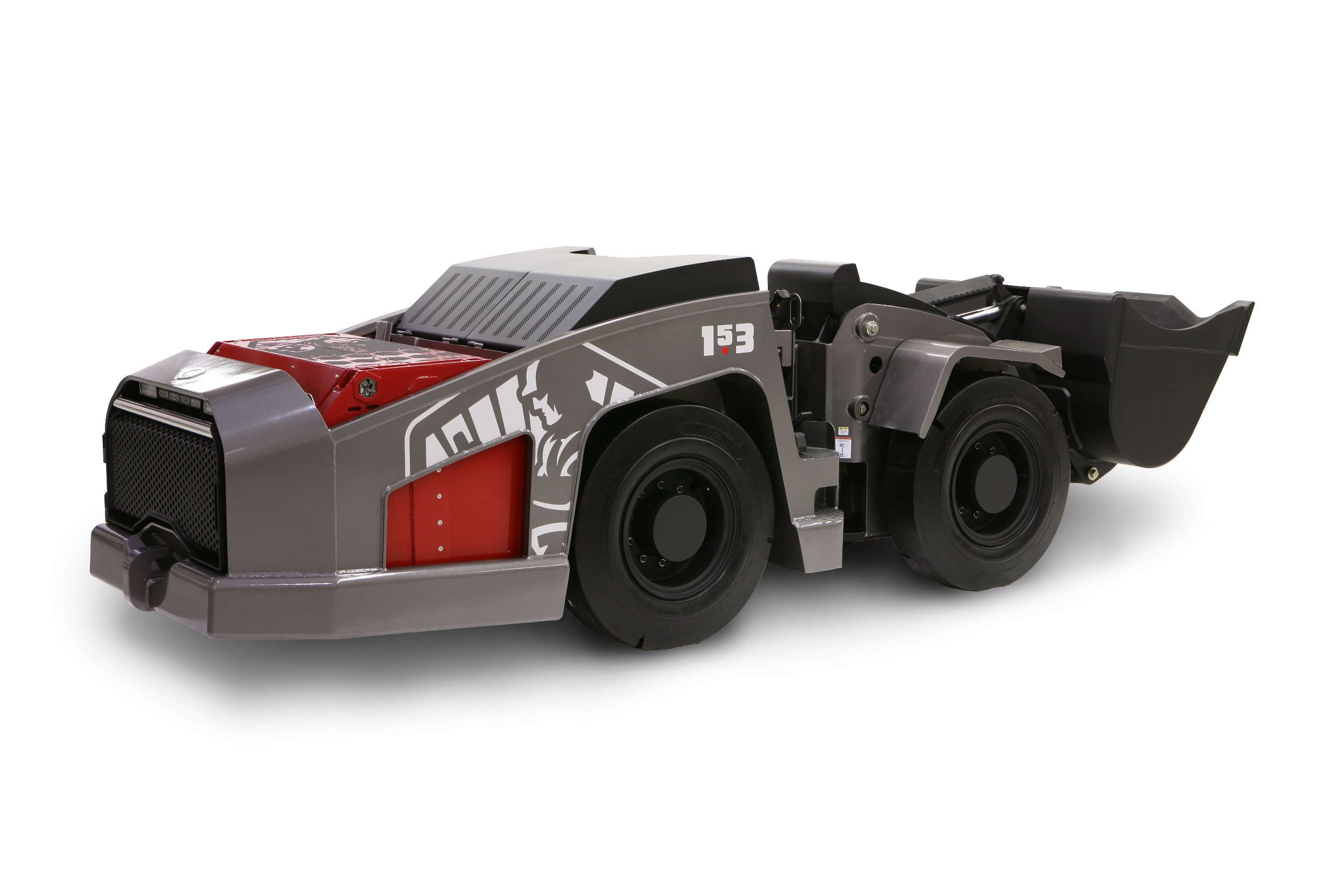

AVS launched a prototype of its all-electric 153 LHD at the beginning of 2016

Ventilation currently represents around 50% of metal producers’ overall energy costs. Mines are looking to go deeper and still remain economic, while also eliminating fine diesel particulate matter from the underground work environment. Couple these aims with the need to achieve clean-energy targets and secure greenhouse-gas reduction benefits, and it’s clear that there are a myriad of drivers for the introduction of battery-powered vehicles that are engineered for life underground.

A mobile fleet propulsion system that can reduce ventilation, diesel engine power requirements and also deliver a health-and-safety dividend has an extremely compelling business case. And as miners have come to realise this, so interest in battery technologies has grown among the mining community. The MINExpo 2016 tradeshow held last September was the perfect gauge for this; almost every OEM was showcasing an electric-drive system, regenerative-drive technology or battery-propelled underground machine of some sort. Compare this with the 2012 incarnation where automation and EPA Tier 4 Final compliant engine technologies were the key talking points, and it’s clear that the focus of the industry has shifted somewhat.

Time for change

So what has brought about this change?

“Interest is coming from two sources,” says Jani Vilenius, director of research and technology development, PA Rock Drills and Technologies, at Sandvik Mining and Rock Technology. “Battery technology is being applied more widely in other industries and, for that reason, its applicability in mining is also being questioned, creating a technology push.

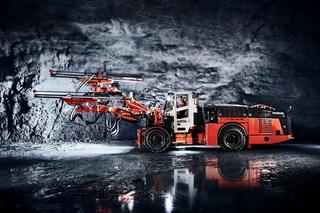

Sandvik's DD422iE drill rig is on order for Goldcorp's Borden Lake operation in Canada, the world's first all-electric mine

“On the other hand, future mining conditions are going to be even tougher than today, creating the need for greener and more efficient technologies. Battery cell production has ramped up in recent years to be ready for the automotive and green-energy industries. The mining industry has acknowledged that the high value of reduced ventilation and heat, and socioeconomic factors, plus the application of new battery technologies,§ may enable an increase in the productivity of underground units, giving the ingredients for new way of mining.”

Batteries of some sort or design have been around in mining for decades. However, with advances in chemistry and associated technologies such as DC motors and charging technologies, what exists now are batteries that are much more suitable and adaptable for the underground mining environment.

“On top of this is the willingness of mining companies to take on and adapt new technologies and ideas that were once not seen as a solution for widespread adoption in the mining sector,” explains Anthony Griffiths, product manager for fleet electrification at MacLean Engineering.

MacLean launched its Fleet Electrification programme in 2015. The effort resulted in three completed builds in 2016 – two battery-powered Bolters and one battery-powered Boom Truck – as well as its first EV Series fleet sale (ground support and production support) also to Goldcorp’s Borden Lake. “We have committed to having our full fleet of ground support, ore flow and utility vehicles electrified by the end of the coming calendar year,” Griffiths adds.

Of course, until a technology is proven, it’s extremely hard for it to gain traction. One project that is helping to change the way the mining industry perceives battery technology is Kirkland Lake Gold’s (KLG) Macassa mine complex in Ontario (notice the trend: the Canadians are some of the most forward-thinking when it comes to adopting new mining technologies).

Artisan Vehicle Systems, a manufacturer of electric battery-powered underground mining equipment based in California, US, worked with KLG to prove the technology as part of a production fleet.

“Prior to implementing this battery-powered fleet, other mining companies had tested a few battery prototypes with little success,” AVS’ president and CEO, Mike Kasaba, tells MM. “KLG now has more than 25 battery-powered loaders and trucks. These machines are responsible for moving more than 60% of the ore in the Macassa mine.

“Battery technology is having a real impact on KLG’s production capability. As a result, the rest of industry has taken notice and is evaluating how they too can take advantage of this new technology.”

The measurable benefits to KLG have included: faster access to rich reserves, lower capital spending on ventilation, and healthier working conditions for miners.

Battery-powered products for hard-rock mining are also in the pipeline for Caterpillar which, as the mining industry’s largest OEM, is a pretty good bellwether for a technology’s potential to become mainstream.

Jay Armburger, battery power project manager for underground hard-rock vehicles, tells MM: “Our battery programme is starting with our smaller LHDs. Our first prototype machine in trials at a Caterpillar proving ground is an R1300 that carries a 6.8t nominal payload. Design work concentrated on developing and validating new structures to handle the batteries as well as software and cab updates needed for the new propulsion system. The results of prototype testing will drive the next steps in the programme.”

Caterpillar's first battery-powered machine, the R1300G LHD is currently undergoing trials at a Caterpillar proving ground

It is worth noting that the machines mentioned above are only a snapshot of what’s being developed and tested in the underground mining industry at present; many of the companies approached for interviews as part of this feature were not ready to talk.

What’s available?

There are three types of batteries currently used in underground mining equipment:

  • Lead acid;
  • Sodium nickel chloride; and
  • Lithium ion: a subcategory that includes lithium iron phosphate (LFP), lithium titanate (LTO) and lithium nickel-cobalt-manganese (NCM).

Each has its strengths and weaknesses based on the specific application.

Traditional lead-acid batteries have been used in mining for a long time, mainly in soft-rock applications such as coal, salt and potash. However, their widespread use has been stunted by their large size and heavy weight, limited energy and power capacity, limited cyclic life of the batteries and questionable safety credentials.

These batteries are similar to starter batteries found in passenger cars. They have a high power capability, but have drastically reduced efficiency and energy density when used to move higher loads. They require significant maintenance, and also suffer from ‘off–gassing’. Off-gassing is a term that refers to the chemical reaction that occurs in certain batteries, specifically in the charging/overcharging state, or when the battery starts to decay or decompose over time. A number of undesirable gases can be produced based on the battery chemistry; in the case of lead-acid batteries, that gas is hydrogen, which is extremely flammable.

“Lead acid batteries have a cycle life of between 300 and 1,000 cycles, which means they need to be replaced frequently,” says Kasaba. “Their only benefits are that they are low-cost, they’re familiar to most technicians and they don’t require much in the way of monitoring electronics.”

Lead-acid batteries also require a long charging time of several hours and, Vilenius explains, in order to meet the high power requirements of a large mining vehicle and create the steady flow of power needed for traction purposes, quite a lot of battery cells are required.

“Lead-acid batteries may provide a good counterweight for the vehicle, but they generally impose a heavy package, reducing the overall payload/power ratio,” he adds. “The best benefit of lead-acid batteries is that the recycling methods are well established and the cost per energy unit is favourable.”


Moving forward

Modern battery technologies are now being introduced by several companies. Some of these are still being pilot tested, but several have been accepted by the industry and market interest is increasing.

Recently introduced technologies for underground mining include different lithium ion (Li-ion) formulations and sodium nickel chloride technology. Li-ion technologies include several chemistry alternatives; the most attractive for mining applications include LTO, LFP and NCM.

“Fast rechargeable LTO batteries seem favourable for loading and hauling products as they give the possibility for rapid charging, cyclic longevity and superior intrinsic safety features,” explains Vilenius. “Sodium nickel chloride batteries also seem favourable for mining due to their high safety level and excellent volumetric energy density, providing sufficient operation time and range.”

“The battery types that we have reviewed or looked at start with the traditional lead acid, then move through different chemistries such as LFP, LTO and NMC, and some other less well-known offerings,” says Griffiths at MacLean. “The benefits and limitations vary from chemistry to chemistry and each has its own pros and cons.”

AVS has found that most of its mining customers prefer LFP batteries for their safety benefits, low cost and reliability

Energy density is the unit of measure used to indicate the potential for producing energy. Diesel fuel has a very high density rating and this makes it a good fuel source. Lead acid-based batteries have a density that is at the lower end of the current battery chemistries that are now available.

“The chemistry that we have chosen for powering our fleet has easily doubled and, in some cases, tripled the total life cycle and number of charging cycles that a traditional lead-acid battery can provide,” Griffiths adds.

AVS, meanwhile, has found that most of its mining customers prefer LFP batteries for their safety benefits, low cost and reliability.

“New battery chemistries are announced frequently, but only a few are worthy of high volume, reliable and cost-effective use. The rest never make it out of the laboratory or are extremely expensive with no path to affordability,” says Kasaba.

“Of the few production-worthy battery chemistries on the market today, we see slow but steady improvements in energy density, power output, thermal performance, behaviour uniformity and longevity.

“The main technological advancements are in the accompanying electronic control systems. These systems enable better performance, higher reliability and longer life for batteries.”

AVS’ underground LHDs are powered by LFP and LTO batteries. “Our latest battery packs contain 30% more energy using the same space as before,” explains Kasaba. “We have also significantly improved our system’s performance in environments with high ambient heat.

“Our new system also cuts charge time in half (from two hours to one hour).”

AVS launched a prototype of its 153 LHD at the beginning of 2016. “That unit is working well and our first four production units are now in service at two mine sites,” says Kasaba. “Orders for 153s in 2017 will expand our installation base to four additional mine sites in Canada, the US and Peru.”

Sandvik has two battery technologies in use at the moment. “No single technology can today fulfil the needs of different applications, so application needs to drive technology selection,” says Vilenius. “However, our number one selection criterion is safety. For applications needing lower power and higher energy-capacity-per-volume, sodium nickel chemistry is used. For high power, LTO chemistry is used.”

Sandvik's driveline technology taps into the mine’s existing electrical infrastructure to enable the DD422iE battery to recharge during the drilling cycle

Vilenius acknowledges that there is a continuous need for higher-energy capacity batteries, but no promising solutions are available in the near future. “Battery technology selection is a multivariable question with technical and financial aspects,” he says. “If some of the current high-energy alternatives were chosen, good properties such as safety would be compromised.”

Bright future

Currently, the vast majority of underground equipment is powered by diesel. However, every major mining company in the world is evaluating the use of battery-powered machines. Several major mining companies have projects under way right now to deploy battery-based equipment for large-scale production operations and these deployments will help drive broader market acceptance.

“Mining executives are telling us that they know the industry is moving away from diesel and toward zero-emission equipment for underground use,” says Kasaba. “The tipping point for the entire industry will be driven by success stories from soon-to-be-announced large-scale deployments.

“We believe that by 2020 all RFPs [request for proposals] for underground operations will request only zero-emission equipment and any remaining diesel equipment will be phased out soon thereafter.”

Vilenius is also optimistic, although a little more reserved in his outlook: “There seems to be great market potential. There are dozens of concrete requests for battery-powered machines from mines. Volumes will still be moderate over the coming five years though; it will take decades for electric machinery to become mainstream.”

Salt-bath breakthrough

In 2016, CSIRO scientists, in collaboration with RMIT University and Queensland University of Technology, demonstrated that pre-treating a battery’s lithium metal electrodes with an electrolyte salt solution extends battery life and increases performance and safety.

Dr Adam Best, senior research scientist and research group leader with CSIRO Manufacturing, told MM that the breakthrough could also have significance for the mining industry.

“Mining batteries are typically used in harsh environments. This can cause substantial degradation of the device and shortened life. Moreover, in many instances due to the extreme temperatures used, the batteries are primary cells (they can only be discharged once) and need to be disposed of once used. As such they are generally more expensive. The use of rechargeable batteries is preferred on a cost basis as this reduces wastage.”

The pre-treatment process involves the immersion of lithium metal electrodes in an electrolyte bath containing a mixture of ionic liquids and lithium salts, prior to a battery being assembled.

The electrolytes breakdown on the surface of the lithium metal, causing a thick insulating layer to form – the solid electrolyte interphase (SEI) – which thickens with both time and cycling.

Best explained: “We have identified a class of ionic liquids (ILs) that show superior electrochemical stability and form a stable SEI to support long-term cycling.

“ILs have far superior thermal stability and no vapour pressure when compared with standard lithium-ion battery electrolytes. This combination of properties reduces the risk of explosion and fire [a known rechargeable-battery issue].

“By completing the pre-treatment process before assembling the battery, we are aiming to reduce the amount of electrolyte that is broken down during charge and discharge, and improve the efficiency and cycle life of the device,” he added.

Batteries that have undergone the process can also spend up to one year on the shelf without loss of performance.

Best told MM: “We have been able to demonstrate >1,000 full charge-discharge cycles using a lithium metal | LiFePO4 cell. This is well in excess of cells that have not been pre-treated or would use standard electrolyte solvents.”

The electrolyte salt solutions, to which CSIRO holds patents, come in a range of chemical compositions that the team said could be easily adopted by manufacturers.

The team has also developed a concept for a high-temperature rechargeable battery that allows operation up to 120°C, which is specifically aimed at the oil-and-gas market, but could also find a niche in mining.
